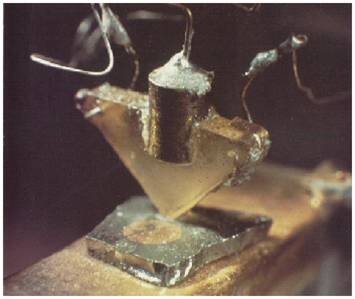

Figure 1: The original point-contact transistor structure comprising the plate of n-type germanium and two line-contacts of gold supported on a plastic wedge




The Invention of the Transistor

On December 23, 1947, in a private demonstration for AT&T executives, the Bell Laboratories research team, the 1956 Nobel Prize winners John Bardeen, Walter H. Brattain, and William Shockley, demonstrated the point-contact transistor3) as a working amplifier. In the demonstration, speech was amplified using the transistor. The transistor was born!

The development was launched from a base of contributions made by Bell Laboratories scientists and engineers, whose pioneering work on semiconductors made a new class of semiconductors available to physicists. The invention of the point-contact transistor was the interim result in a research effort, which had begun during the Spring of 1945. The objective of this effort was the junction field-effect transistor.

The field-effect device was by no means unknown by then. The basic principle of the field-effect transistor was proposed by Julius Edgar Lilienfeld 4) [8] as early as 1925. In 1934, Oskar Heil [6] described a structure similar to the junction field-effect transistor. However, practical implementations were impossible due to materials-related problems. The technology to produce such devices on a commercial basis did not yet exist.

The 1945 experiments, proposed by William Shockley, on a thin-film field-effect transistor failed. In early 1946, John Bardeen proposed that problems of surface-state charges shielded the gate field from the semiconductor interior, and for the next eighteen months the `transistor research team' focussed on penetrating the shield. In an experiment on 17 November, 1947, Walter H. Brattain overcame the blocking effect of the surface states, and during the forthcoming `magic month'[12], a sequence of `creative failures' led to the invention of the point-contact transistor:

. . . Bardeen and I were simply trying to make a good `Field Effect' device and as a result, we were put in a situation to observe, for the first time, a phenomenon (namely minority carrier injection [3]) now called the `Transistor Effect' - and to use this to make a transistor![5]

An entry in W.H. Brattain's notebook shows that on 16 December, 1947, point-contact amplification [2] was observed. The discovery was demonstrated to AT&T executives on December 23 and recorded in Brattain's Christmas Eve notebook entry. The invention of the junction (bipolar) transistor, superior to the point-contact transistor, followed shortly after, on 23 January, 1948. And eventually, on 30 June, 1948, the bipolar transistor was announced[4].

The impact of the transistor was no less than revolutionary. Inherent to the transistor is the availability of electrons to meet the transistor operation needs without the use of power e.g. to energize a hot cathode as in the vacuum triode tube. Small size, low power consumption, low collector potentials and finally, a dramatically improved reliability, were the immediate benefits over electron tubes. With the maturing of technology, the manufacturing costs should proove much less than electron tubes.

For the U.S. Military, the urgent requirements for national security overrode the high costs of early transistors, and the military initiated several research programs to develop transistors and circuits for military use. The motivation was to promote the effort to miniaturize complex electronic systems to be installed in equipment in which size, weight, and power consumption were severely constrained 5). In a paper in 1952 by I.R. Obenchain [11], the development of portable computers as well as advanced electronic control systems for weapons was forecasted. And for three decades to come, military initiated research should remain the primary funding for research in integrated circuits.

Author: Flemming Stassen
